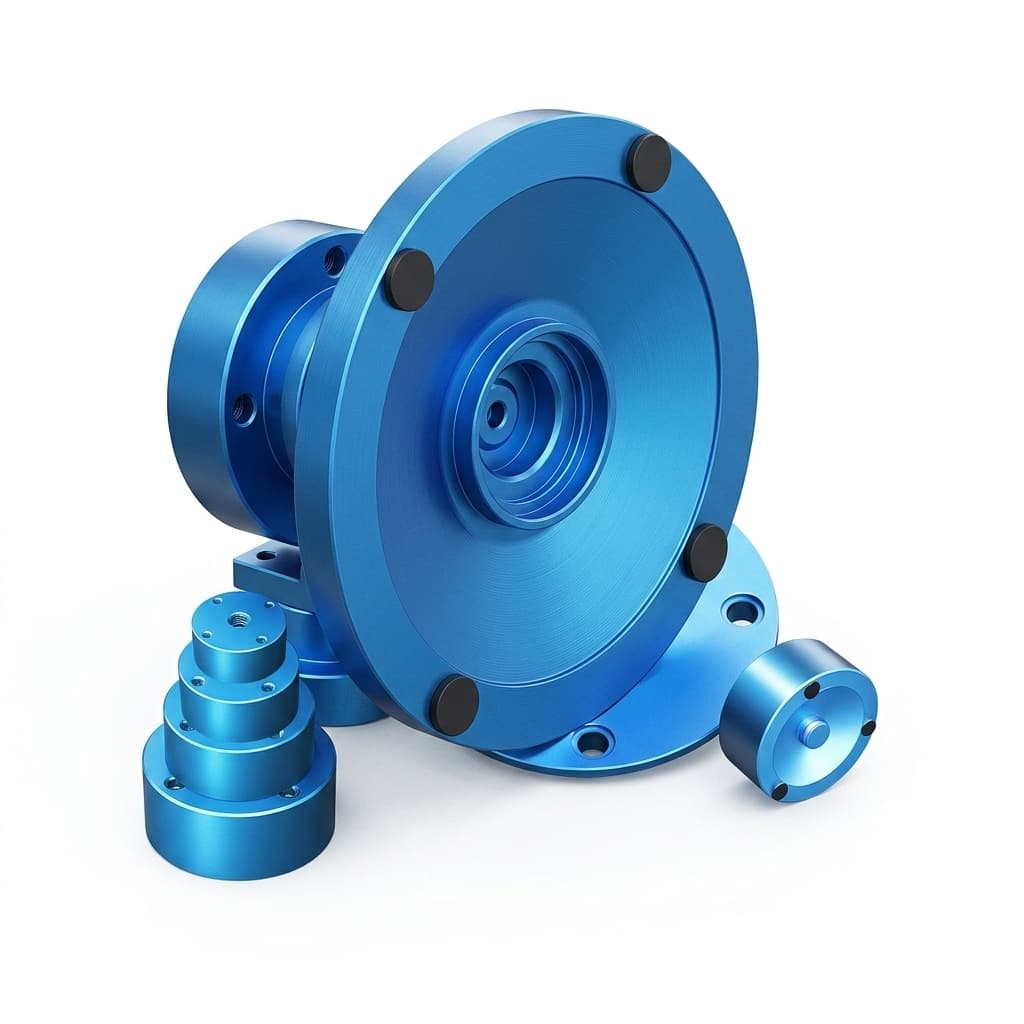

Vacuum Manifolds & Suction Cup Mounts
CNC machined vacuum manifolds, suction cup mounts, pneumatic blocks, and EOAT airflow components with port, sealing face, and burr-control review.
Review productEOAT Application
Packaging & Palletizing EOAT Components
CNC machined EOAT components for packaging, palletizing, bag handling, foam vacuum grippers, and high-cycle material handling automation.
Packaging and palletizing tools need to survive high cycles, imperfect product variation, and maintenance pressure. Machined EOAT parts should make vacuum, gripping, weight, and spare-part replacement predictable.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Pressure in This Application
- High-cycle cells punish weak brackets, loose fittings, and poor edge treatment.
- Product variation in bags, boxes, cartons, and foam often creates grip instability.
- Downtime pressure makes spare parts and service access more important than cosmetic finish.
- Large EOAT structures need weight control so the robot can keep speed and payload margin.
Typical Machined Parts
palletizing gripper plates and bracketsbag gripper and foam gripper machined componentsvacuum manifolds and suction cup mounting plateslarge adapter plates and lightweight framesservice replacement blocks, pins, and mounting details
Application Requirements Mapped to EOAT Machining
A useful RFQ connects the automation problem to machining, material, inspection, and documentation decisions. This matrix shows what usually needs to be made explicit.
| Buyer Need | EOAT Concern | Machining Response | Buyer Evidence |
|---|---|---|---|
| High-cycle durability | Loose brackets, worn pins, and repeated maintenance stops | Control fastener access, wear details, material choice, and replaceable features. | Serviceability notes and repeat-order baseline. |
| Vacuum and grip stability | Dropped product, unstable pickup, or leakage under variation | Machine port features, suction cup mounts, sealing faces, and part-contact geometry. | Port, sealing, and contact inspection notes. |
| Payload and reach control | Heavy tooling slows the robot or reduces allowable product load | Use pocketed aluminum, ribbed geometry, and material selection by load path. | DFM comments on weight reduction and stiffness tradeoffs. |
Material & Finish Direction
Material choices should follow environment, duty cycle, product contact, cleaning, payload, and documentation needs. Final selection should still be confirmed against the drawing and buyer standards.
AL6061-T6 for lightweight packaging EOAT structures
AL7075-T6 for higher stiffness with weight control
SUS304 or 17-4PH for wear-prone pins, guides, and impact features
POM, nylon, or urethane inserts for product-contact or wear surfaces
RFQ Checklist
Add these application details to the first RFQ so the quote can include realistic DFM, inspection, lead-time, and documentation assumptions.
- Product type: bag, box, carton, foam, tray, bottle, or mixed SKU range
- Robot model, payload, cycle rate, and target tool weight
- Vacuum cup model, pneumatic layout, or gripper actuator information
- Expected wear points, impact exposure, and maintenance replacement plan
- Material, finish, and inspection scope for critical interfaces
Application Visuals
What the Images Should Help Buyers Decide
Application images are useful only when they clarify risk. Use these examples to identify product-contact surfaces, robot interface constraints, vacuum or gripping details, service access, and the documentation your team needs before sample approval.

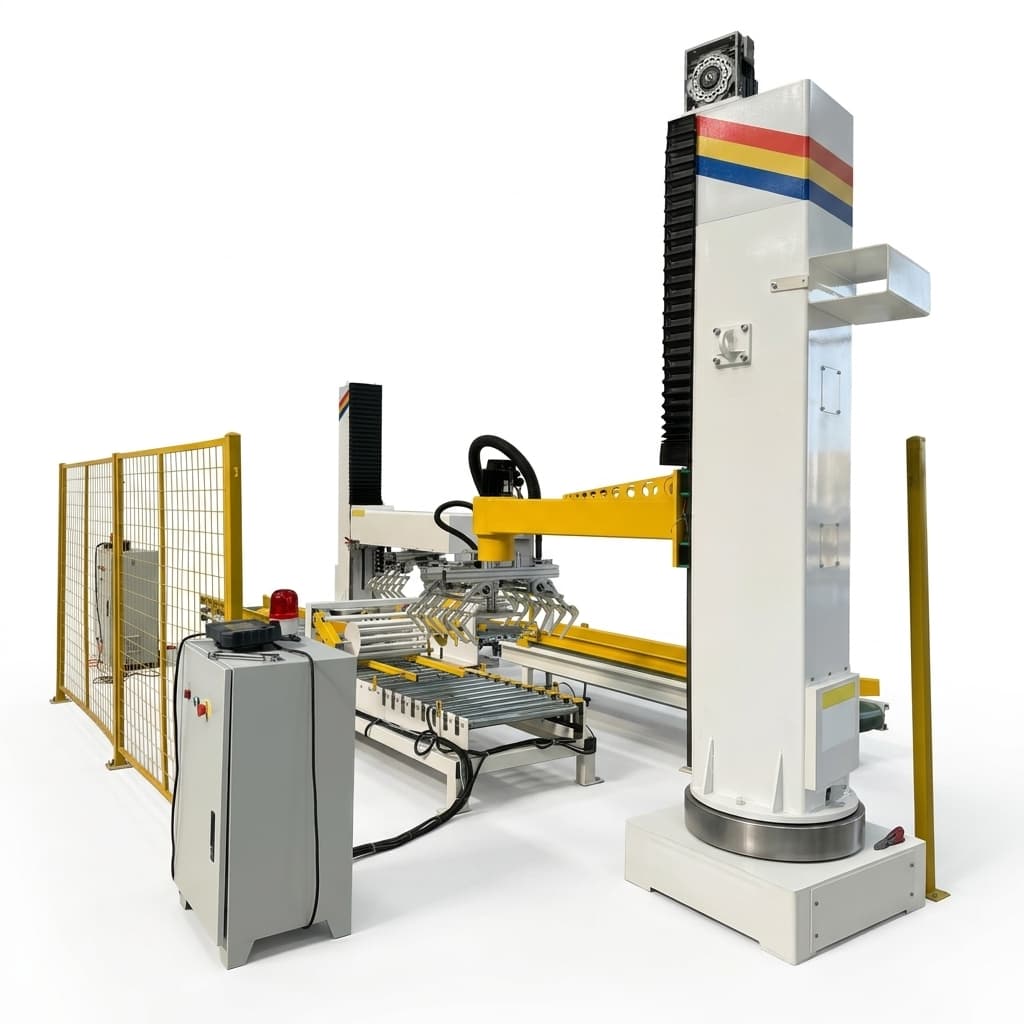

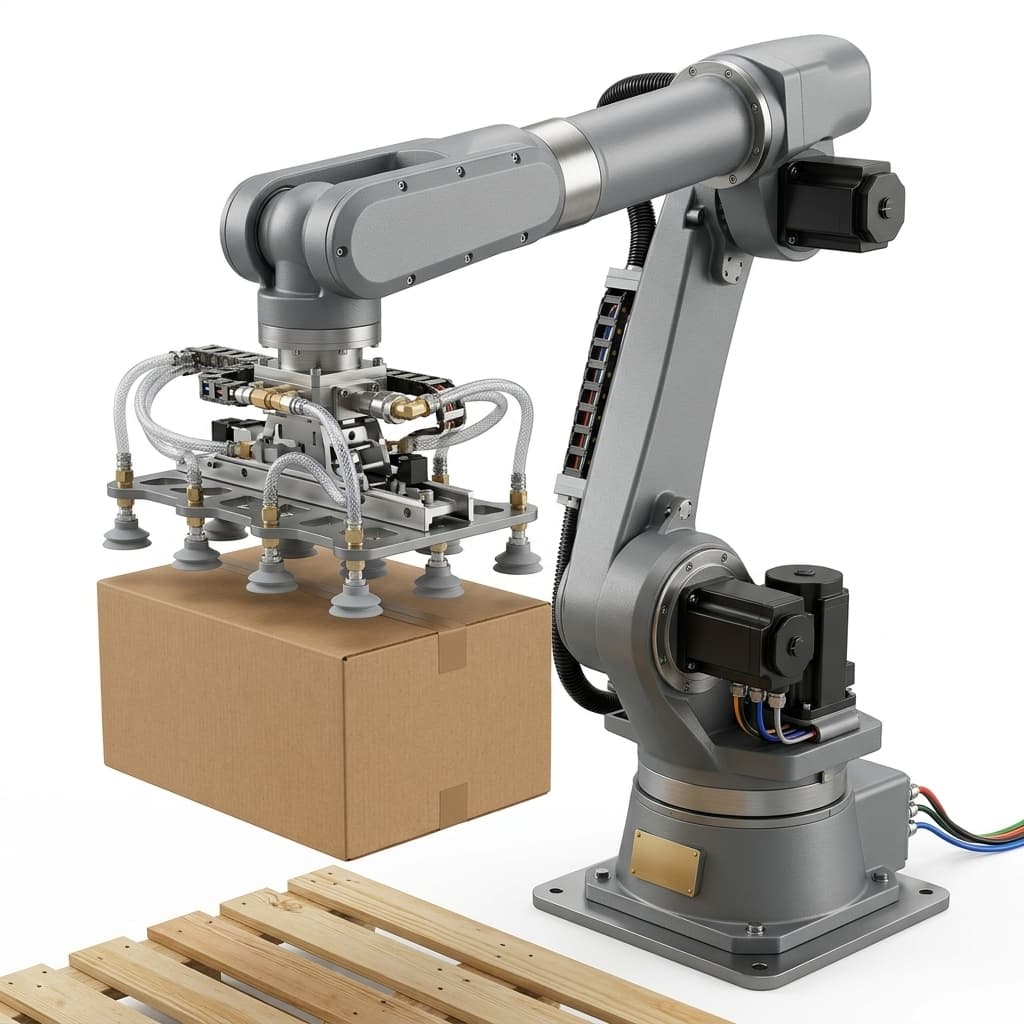

High-cycle palletizing gripper
Relevant when tool weight, service access, and spare parts drive buyer risk.

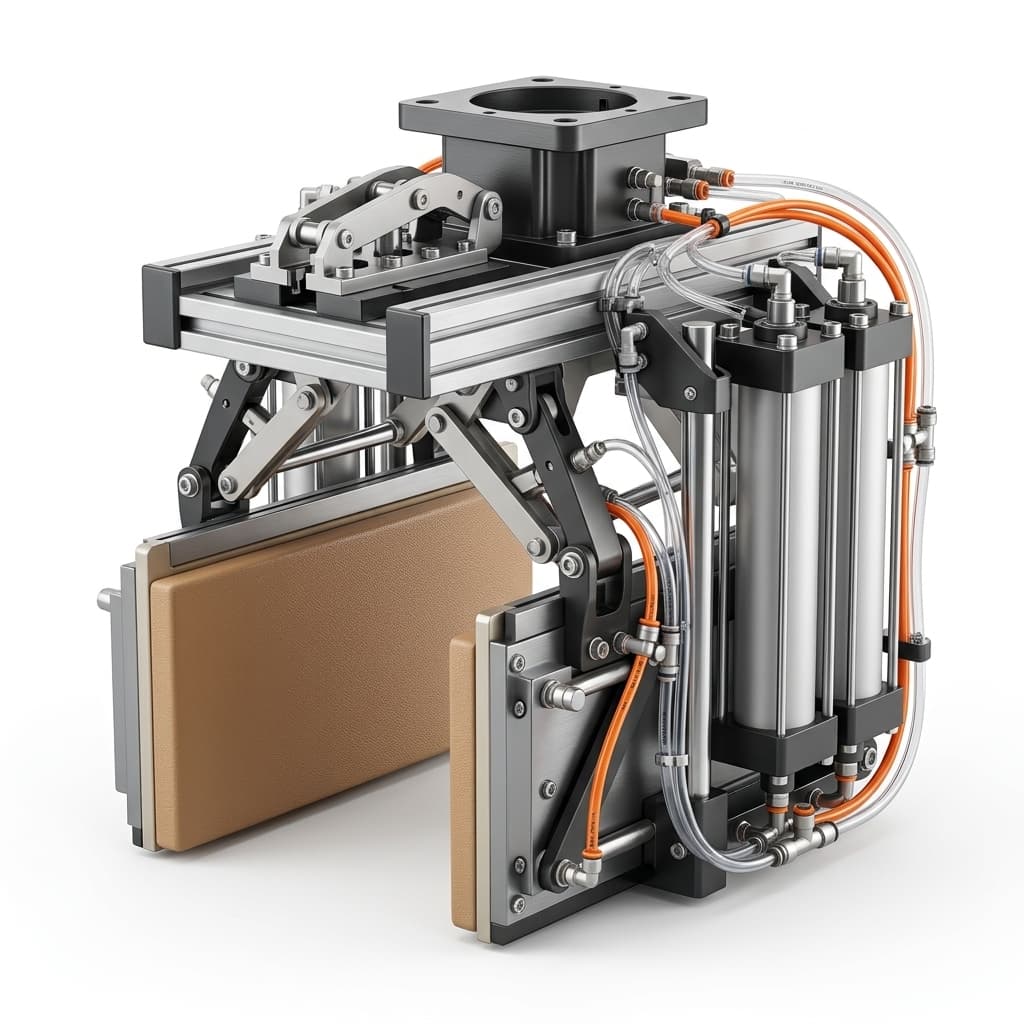

Bag handling variation
Shows why product variation and contact geometry should be included in the RFQ.

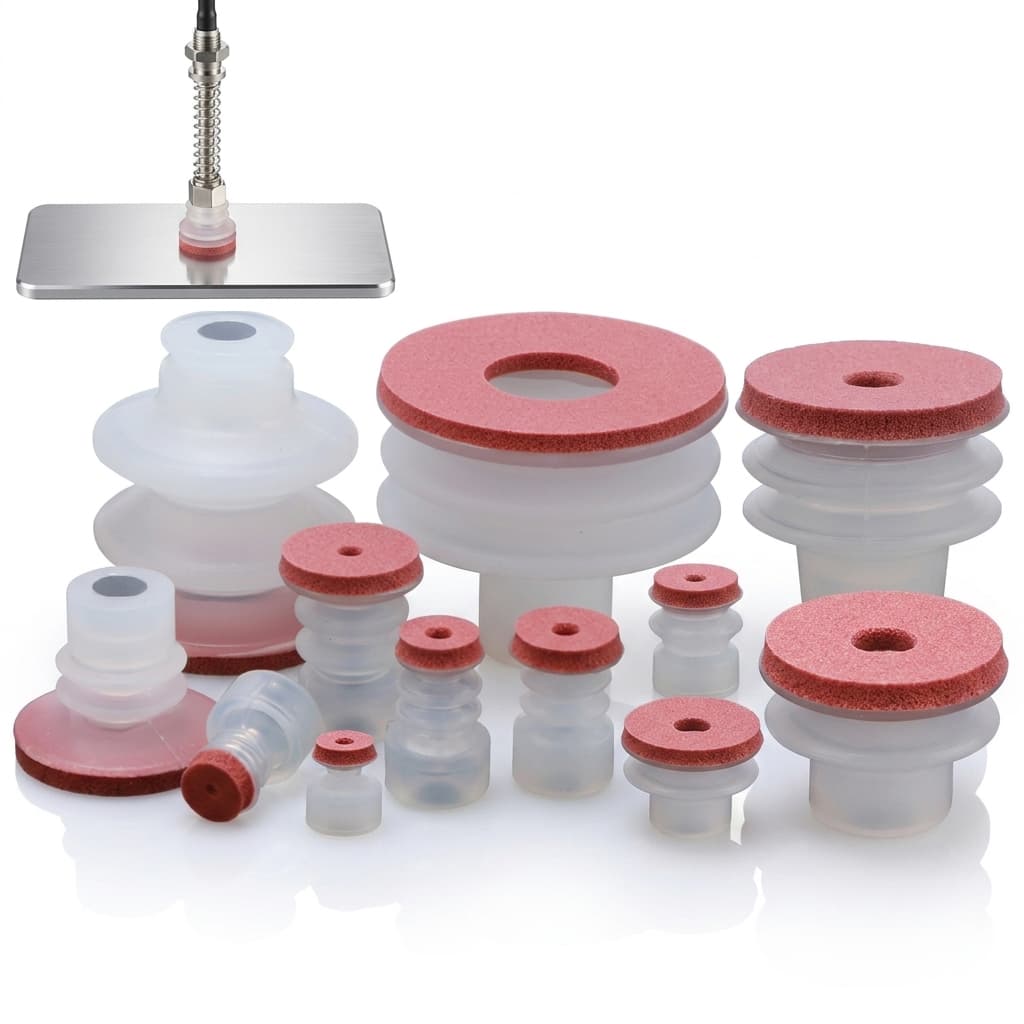

Foam vacuum pickup
Supports vacuum stability, wear, and replacement planning for high-cycle lines.
Risk Controls Before PO
These points should be resolved before quote approval when the parts affect line uptime, part quality, validation records, or supplier onboarding.
- Design service access before the EOAT frame becomes crowded with cups and fittings.
- Confirm product variation range instead of quoting one perfect sample geometry.
- Separate wear parts from structural plates when maintenance downtime matters.
- Mark vacuum paths, port standards, and fitting orientation clearly in the RFQ.
