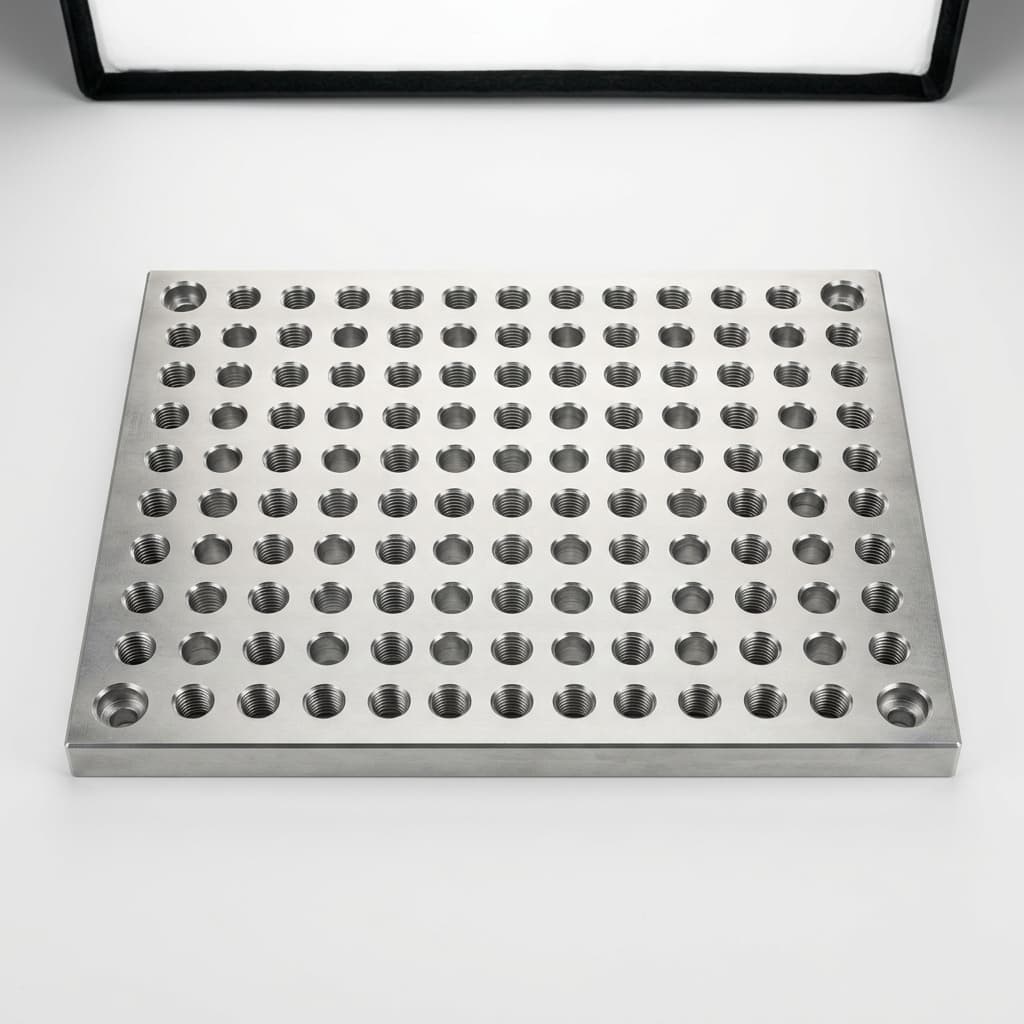

Tooling Plates & Part Nests
CNC machined tooling plates, EOAT nests, locating fixtures, and datum-controlled part supports for robotic pick, place, inspection, and assembly cells.
Review scopeCNC Machined EOAT Product

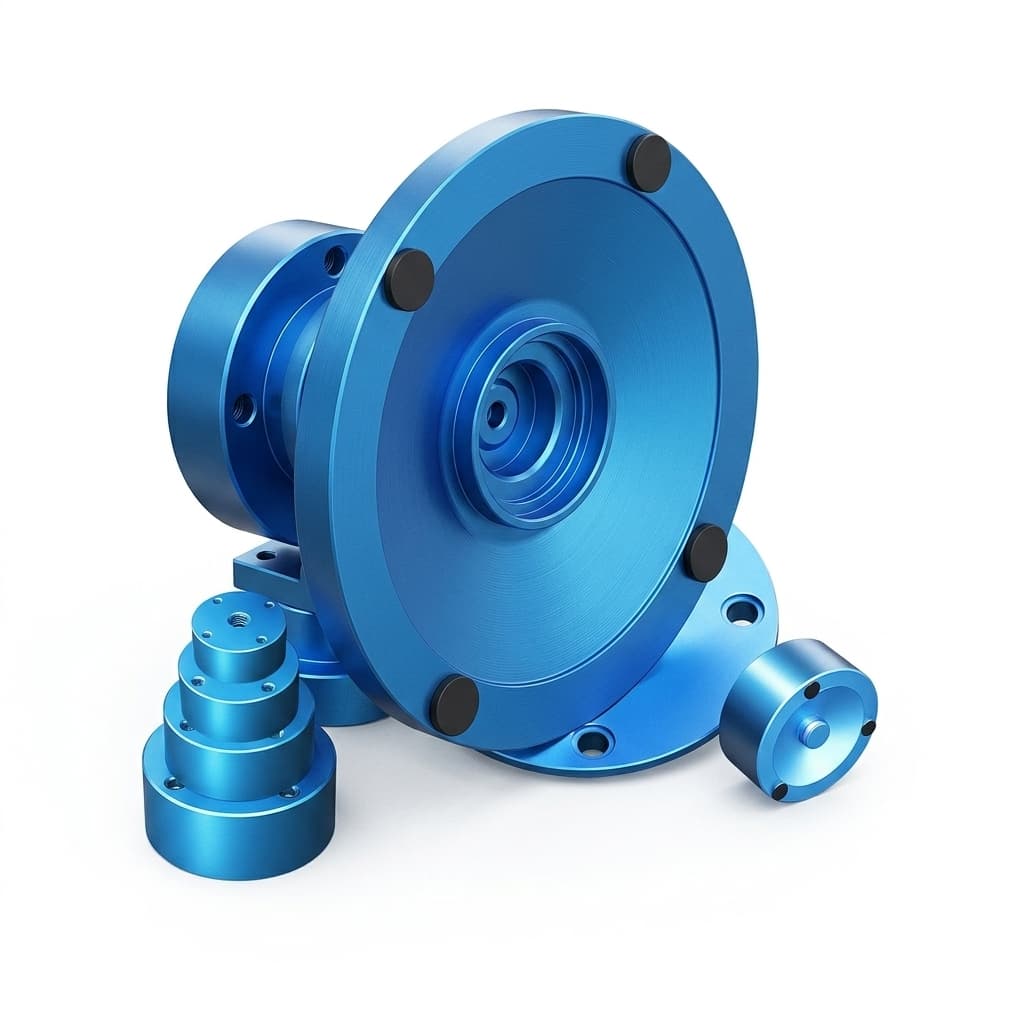

Vacuum Manifolds & Suction Cup Mounts
CNC machined vacuum manifolds, suction cup mounts, pneumatic blocks, and EOAT airflow components with port, sealing face, and burr-control review.
Vacuum EOAT parts fail when ports leak, sealing faces are inconsistent, internal channels retain burrs, or maintenance access is ignored. The machining plan should protect airflow and serviceability, not only exterior shape.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Questions This Part Must Answer
- Are port threads, O-ring faces, and sealing surfaces defined in the drawing?
- Can internal channels be machined and deburred without trapped chips?
- Will suction cups, fittings, and sensors remain accessible after assembly?
- Does the material and finish match cleaning, wear, and chemical exposure?
Common Applications
vacuum manifold blockssuction cup mounting platesBernoulli gripper componentspneumatic distribution platesthin-product handling and packaging EOAT
Material Options to Review
Material choice should follow payload, contact, cleaning, wear, and documentation requirements. These are common starting points for RFQ review, not a substitute for drawing-specific material callouts.
- AL6061-T6 for light pneumatic manifolds and suction mounts
- SUS316L for washdown, food, medical, or chemical exposure
- POM or PEEK for low-friction and non-marring fixture details
- Anodized aluminum when corrosion resistance and lightweight structure both matter
Machining Focus
The machining route should protect the features that affect robot fit, product contact, sealing, replacement, and repeat-order stability.
port thread quality, fitting clearance, and sealing face flatness
deburring approach for internal channels and cross-drilled passages
O-ring groove dimensions and surface finish where leakage matters
assembly access for fittings, valves, vacuum cups, and sensor mounts
Visual RFQ Context
Images to Anchor the Engineering Discussion
Use these product references to decide what belongs in the drawing package: interface faces, part-contact areas, service access, pneumatic or cable details, and the features that should become CTQ inspection points.

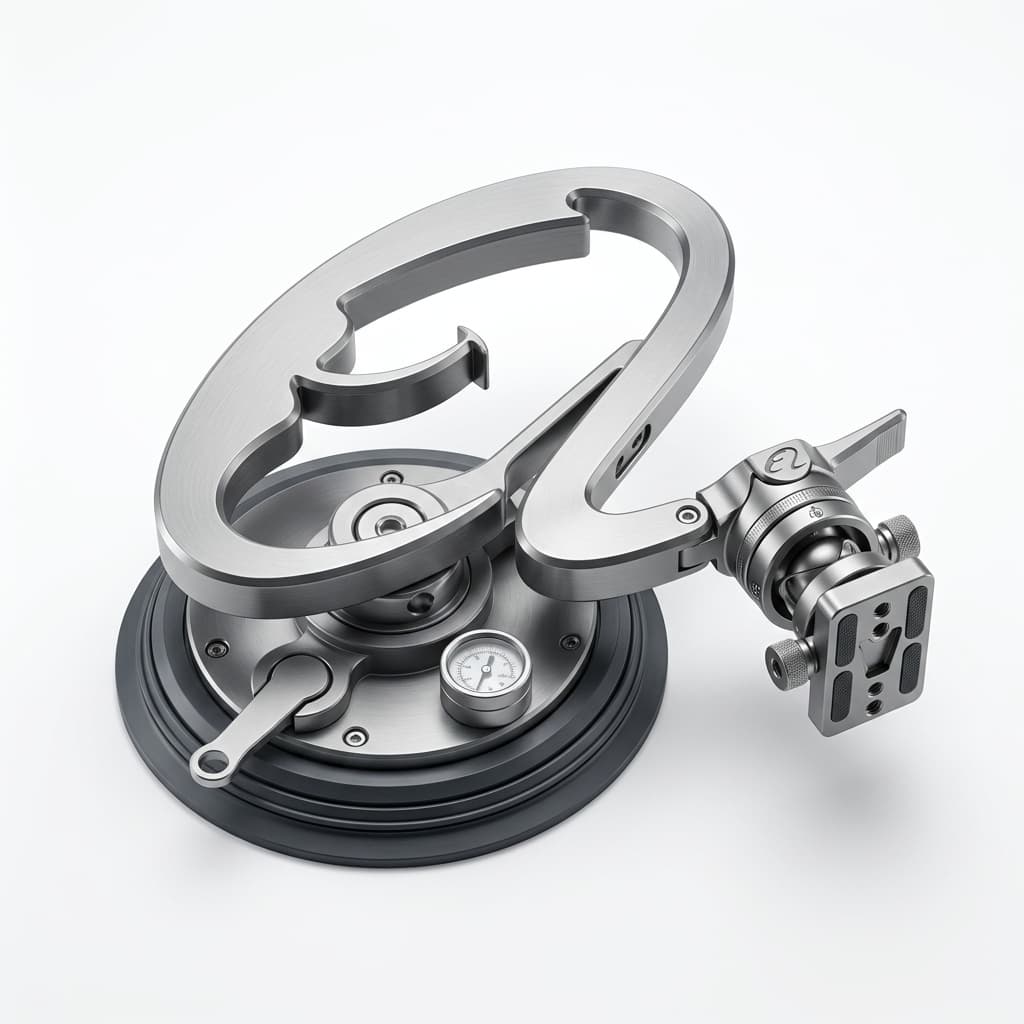

Suction cup mounting detail
Supports RFQ review for port threads, cup access, and sealing surfaces.

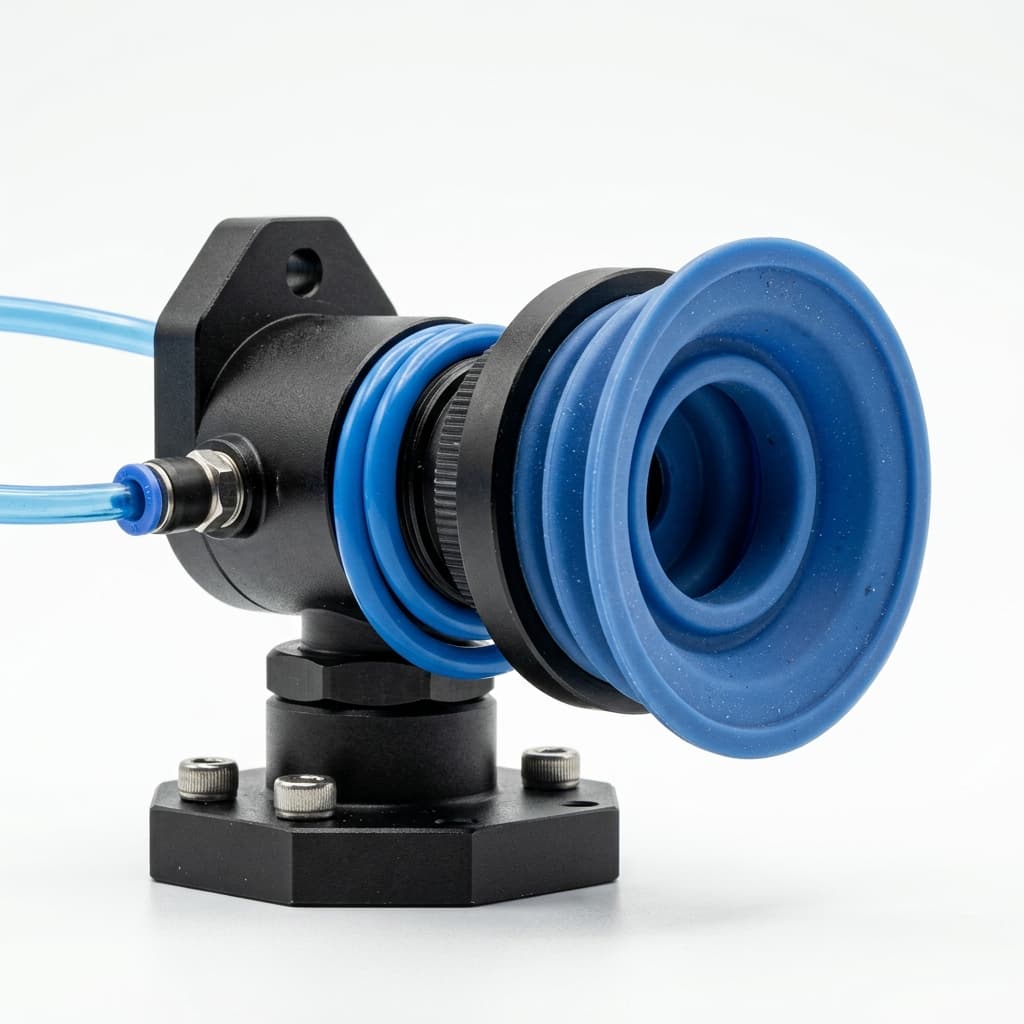

Cobot suction mount
Useful when low mass, fitting clearance, and cable routing matter together.

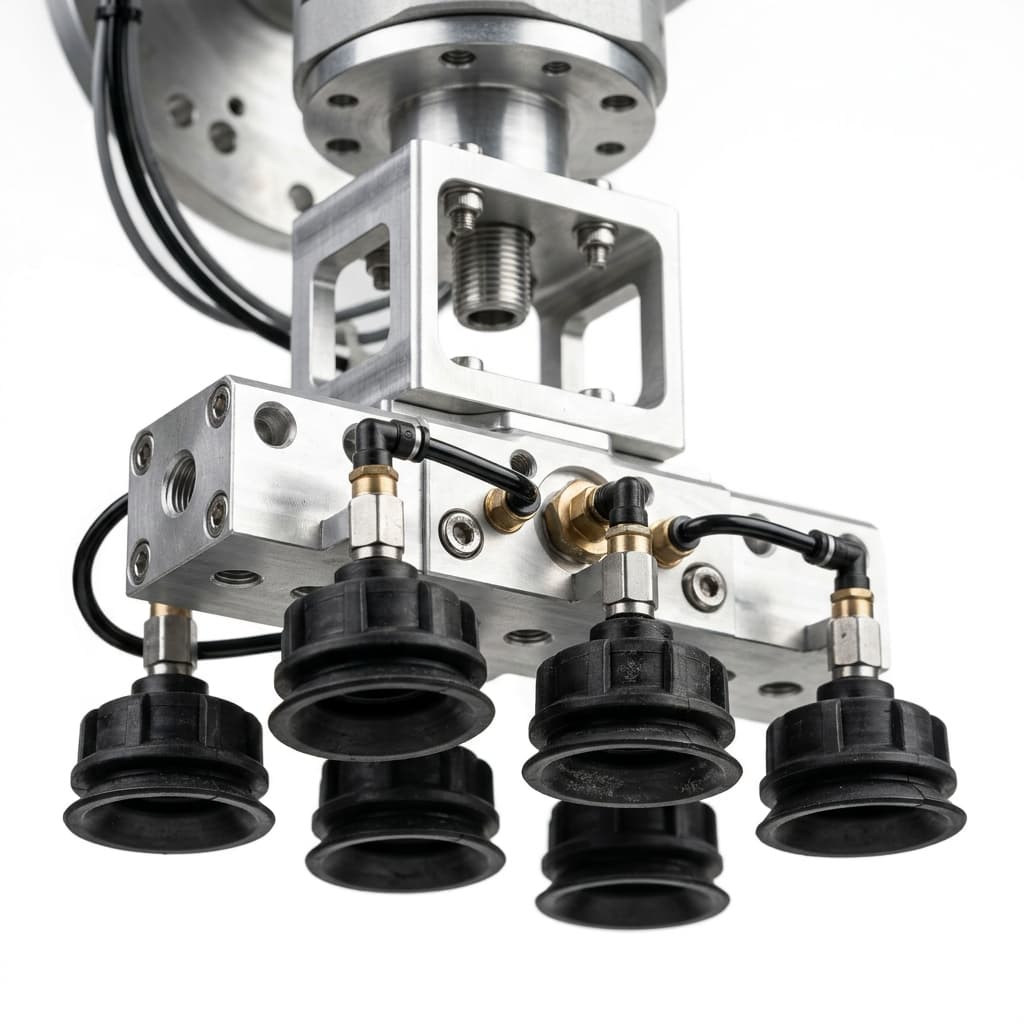

Vacuum gripper context
Shows how manifold features need to remain clean, accessible, and inspectable.
Inspection Plan by Functional Feature
A useful FAI or dimensional reporting plan starts from part function. The table below shows what buyers usually need to verify before releasing the sample or repeating the part.
| Feature | Risk Controlled | Typical Inspection | Buyer Output |
|---|---|---|---|
| Port threads and fitting seats | Air leakage, stripped fittings, assembly rework | Thread, counterbore, and seat checks by drawing callout | Outgoing checklist for pneumatic interfaces |
| O-ring and sealing faces | Vacuum loss and unstable pickup | Flatness, groove, and surface-finish review | Leak-risk notes and acceptance criteria |
| Internal channels | Burr contamination and reduced airflow | Deburring and cleaning plan tied to channel design | DFM notes before machining route approval |
RFQ Checklist
Include these details in the first email to reduce clarification cycles and make the quote easier for engineering and procurement to review.
- Vacuum level, fitting standard, port thread type, and pneumatic diagram
- O-ring groove drawing, sealing face requirements, and leak sensitivity
- Cleaning, washdown, food-contact, or chemical exposure requirements
- Suction cup model and maintenance access constraints
- Inspection or functional test expectations before shipment
Risk Controls Before PO
These controls prevent avoidable sample rework, ambiguous inspection results, and repeat-order mismatches.
- Mark air paths and blocked passages clearly on the drawing.
- Avoid blind internal features that cannot be cleaned or verified.
- Confirm fitting orientation and wrench access inside the EOAT assembly.
- Specify whether leak testing is required or whether dimensional inspection is enough.
Related EOAT Parts
All Product FamiliesReview Adjacent Product Families

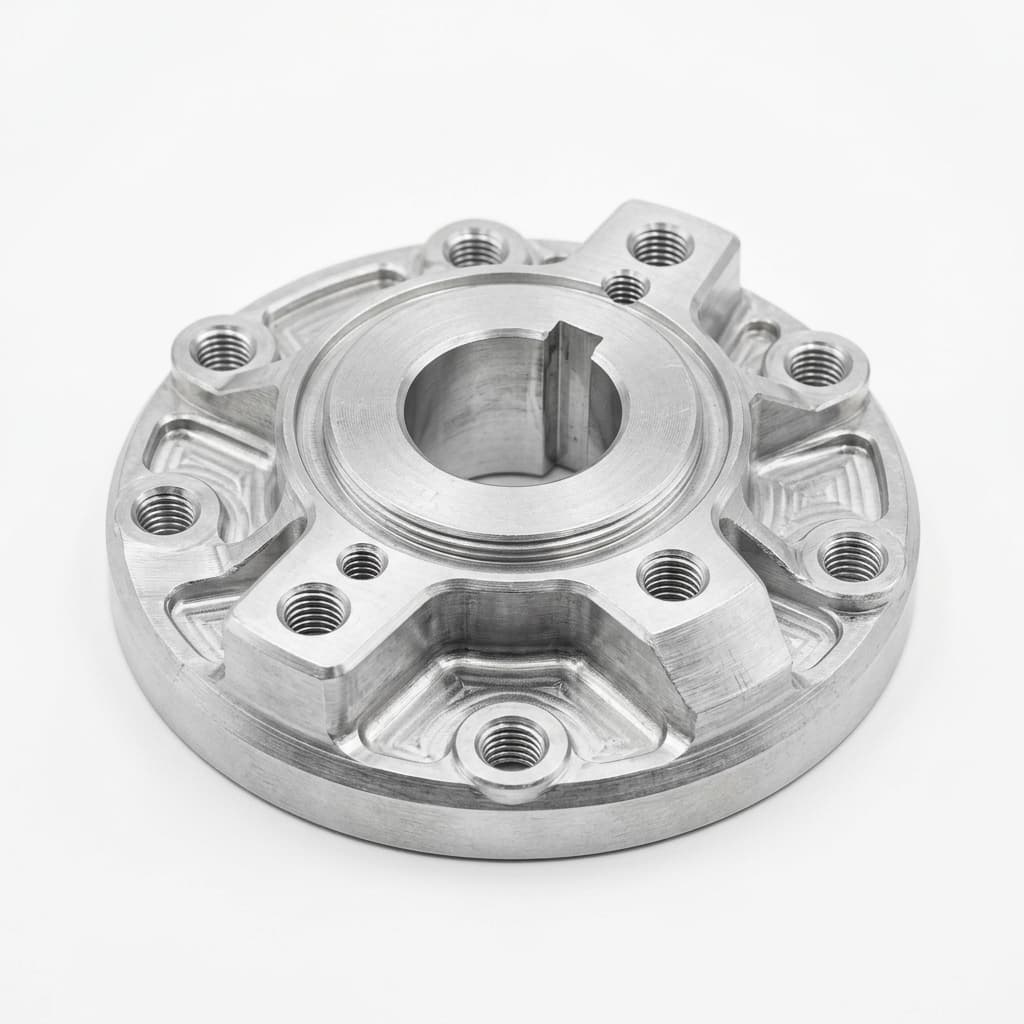

Robot Flanges & Adapter Plates
CNC machined robot flanges and EOAT adapter plates for bolt-circle alignment, tool stack control, dowel datums, and inspection-ready robot interfaces.
Review scope

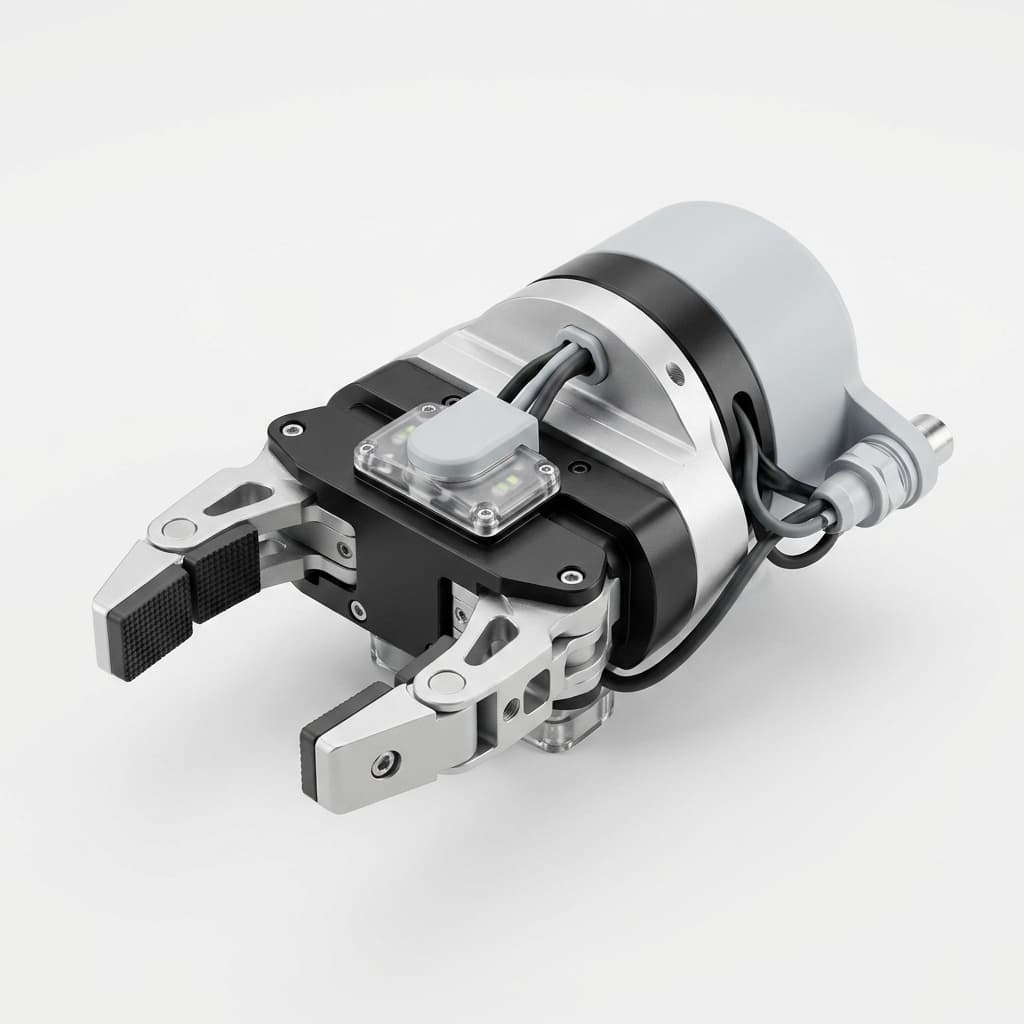

Custom EOAT Components
