Custom EOAT Components
Custom CNC machined EOAT components for robot end effectors, including mixed-material assemblies, brackets, plates, nests, jaws, and inspection-ready replacement parts.
Many EOAT projects do not fit a single part category. The useful supplier question is whether mixed plates, brackets, nests, jaws, pins, manifolds, and replacement details can be reviewed as one controlled tooling program.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Questions This Part Must Answer
- Which parts are prototype-only and which need repeat-order control?
- Can the supplier flag DFM, material, finish, and inspection risks before PO?
- Which components need FAI, dimensional reports, material traceability, or functional checks?
- How will revisions, paired parts, and spares stay traceable after sample approval?
Common Applications
custom robotic end effector partsmixed EOAT component kitsreplacement and spare parts for automation cellsprototype-to-batch tooling programscustom brackets, plates, fingers, pins, nests, and pneumatic parts
Material Options to Review
Material choice should follow payload, contact, cleaning, wear, and documentation requirements. These are common starting points for RFQ review, not a substitute for drawing-specific material callouts.
- AL6061-T6, AL7075-T6, MIC-6, and anodized aluminum
- SUS304, SUS316L, and 17-4PH stainless steel
- TC4 titanium for high strength-to-weight requirements
- POM, nylon, PEEK, and other engineering plastics by project scope
Machining Focus
The machining route should protect the features that affect robot fit, product contact, sealing, replacement, and repeat-order stability.
part-family routing across plates, brackets, jaws, pins, and nests
critical-feature separation so inspection focuses on function
revision control for prototype, pilot, and repeat production
packaging and labeling for buyer-side receiving and assembly
Visual RFQ Context
Images to Anchor the Engineering Discussion
Use these product references to decide what belongs in the drawing package: interface faces, part-contact areas, service access, pneumatic or cable details, and the features that should become CTQ inspection points.

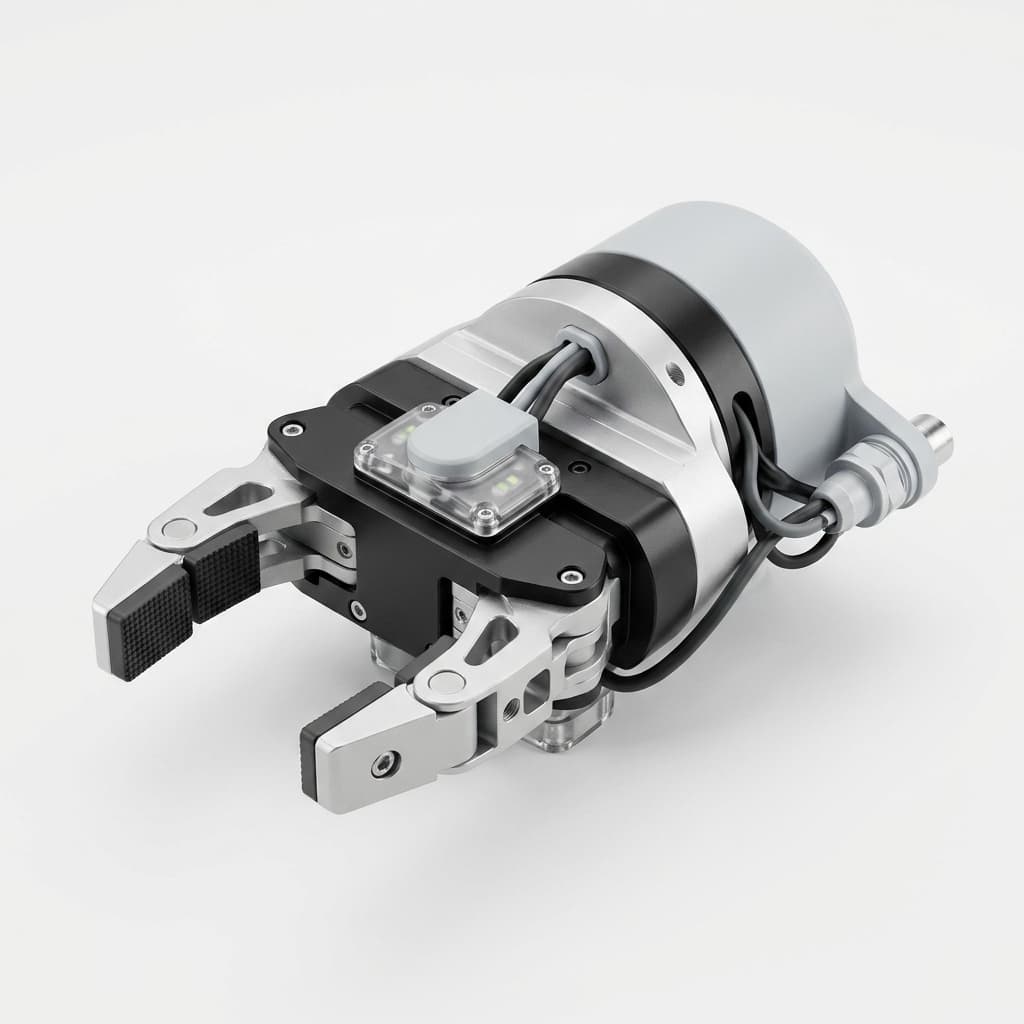

Mixed assembly context
Useful when one RFQ includes plates, jaws, pins, and brackets as a controlled set.

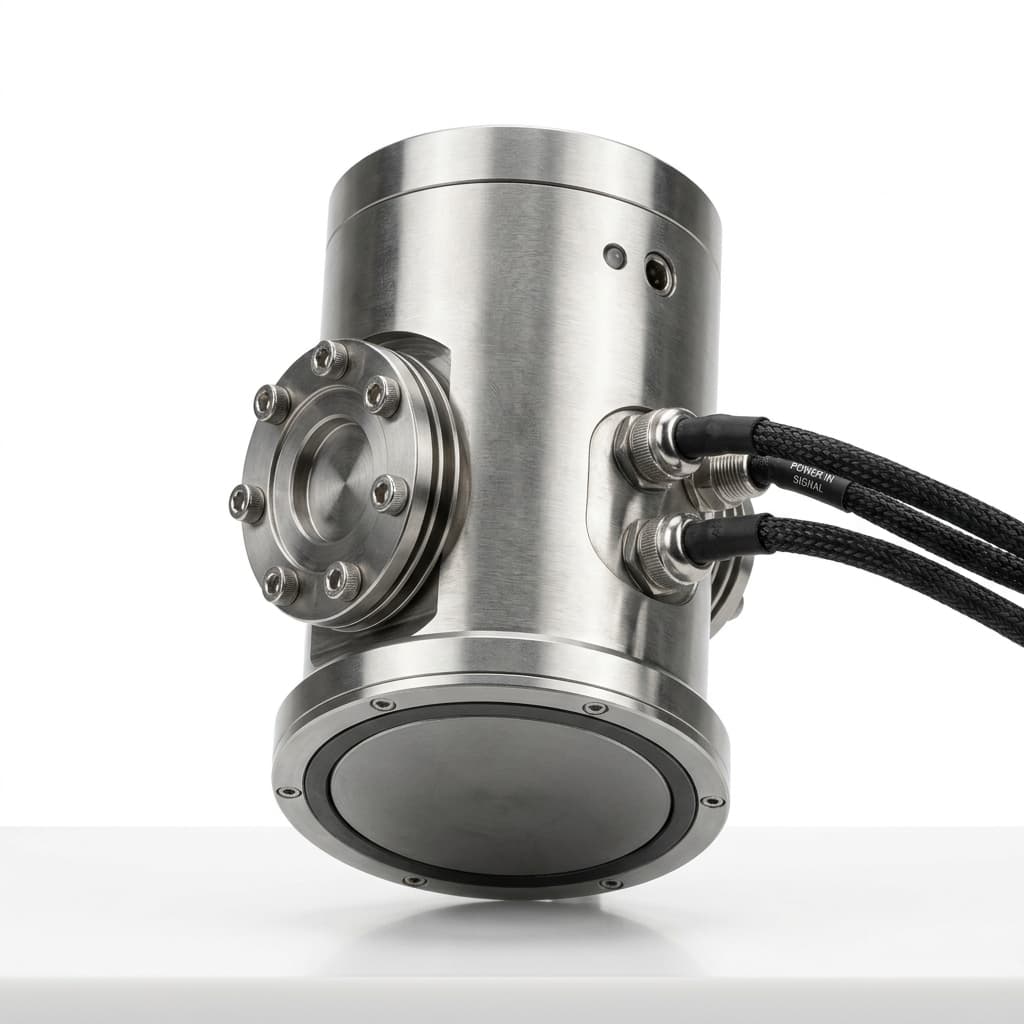

Special handling hardware
Shows that custom programs may combine mechanical, magnetic, vacuum, and contact features.

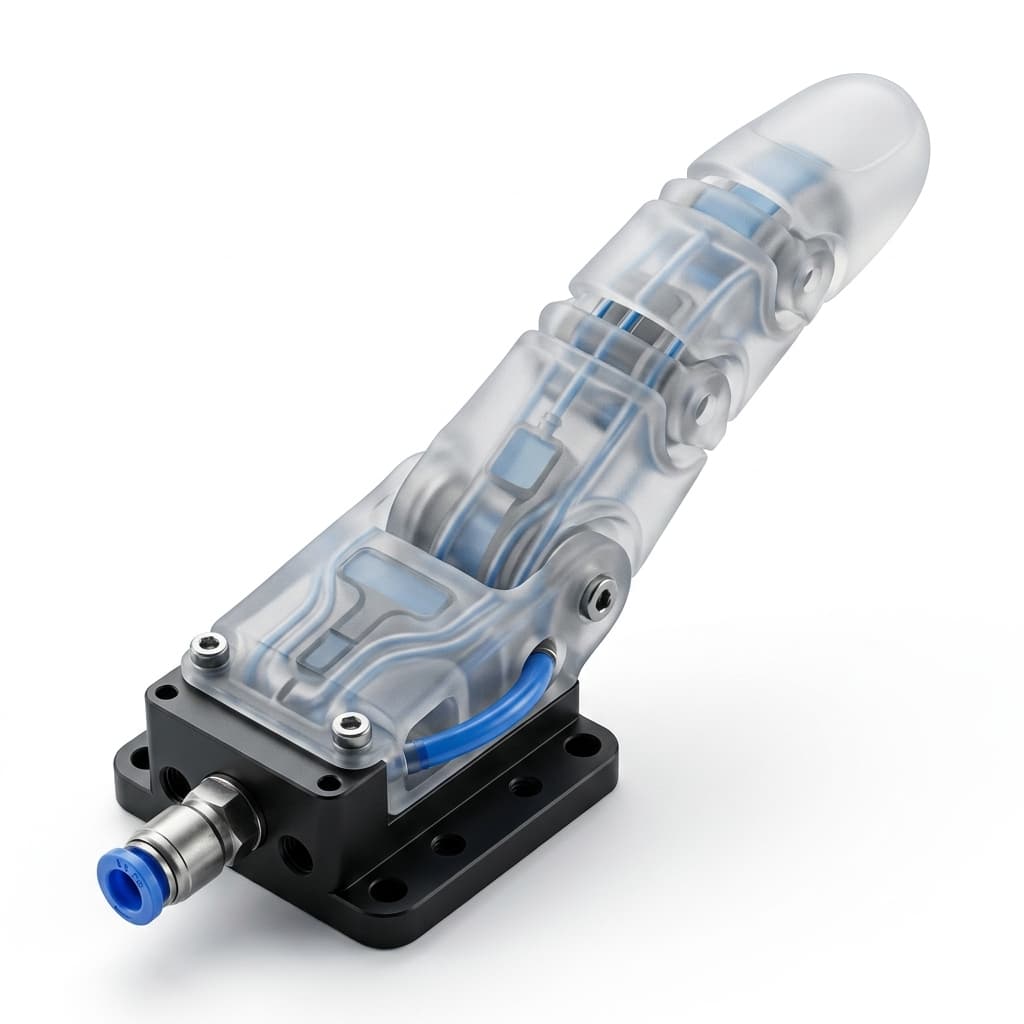

Product-contact variation
Helps buyers identify which custom details affect gripping, protection, and replacement.
Inspection Plan by Functional Feature
A useful FAI or dimensional reporting plan starts from part function. The table below shows what buyers usually need to verify before releasing the sample or repeating the part.
| Feature | Risk Controlled | Typical Inspection | Buyer Output |
|---|---|---|---|
| Program-level CTQ list | Useful dimensions hidden inside a large drawing package | Feature-by-feature inspection plan before sample release | Buyer-readable approval checklist |
| Revision and paired-part control | Mixed revisions and poor repeat-order interchangeability | Part marking, record, and pairing review by scope | Traceable sample and repeat-order baseline |
| Material and finish package | Wrong alloy, incompatible finish, or delayed compliance review | COA/MTR and finish documentation when specified | Procurement-ready document list |
RFQ Checklist
Include these details in the first email to reduce clarification cycles and make the quote easier for engineering and procurement to review.
- Assembly CAD, individual part drawings, and revision list
- Part priority: prototype, validation sample, production, or spare
- Material, finish, and compliance requirements by part
- Critical dimensions and inspection level by component
- Packaging, labeling, and delivery grouping requirements
Risk Controls Before PO
These controls prevent avoidable sample rework, ambiguous inspection results, and repeat-order mismatches.
- Split the RFQ into functional groups so plates, jaws, nests, and pins are not quoted as one vague batch.
- Identify which parts affect robot interface, product contact, sealing, or service replacement.
- Define document requirements before quote approval, not after shipment planning.
- Keep revision control visible when pilot samples move into repeat production.
Related EOAT Parts
All Product FamiliesReview Adjacent Product Families
Gripper Jaws & Fingers
Custom CNC machined gripper jaws and fingers for robotic handling, matched jaw sets, non-marring contact, part location, and CTQ inspection planning.
Review scope
Vacuum Manifolds & Suction Cup Mounts
CNC machined vacuum manifolds, suction cup mounts, pneumatic blocks, and EOAT airflow components with port, sealing face, and burr-control review.
Review scopeApplications That Often Use Custom EOAT Parts
Application context changes material, finish, inspection, and documentation requirements. Review the adjacent pages before sending the RFQ if the part is tied to a regulated, high-cycle, or uptime-sensitive cell.
Food, Medical & Cleanroom EOAT Components
CNC machined EOAT components for food, medical, pharmaceutical, and clean handling environments where material traceability, cleanability, corrosion resistance, and documentation matter.
Packaging & Palletizing EOAT Components
CNC machined EOAT components for packaging, palletizing, bag handling, foam vacuum grippers, and high-cycle material handling automation.
RFQ Readiness
One RFQ Package That Engineering, Quality, and Procurement Can Use
A good EOAT machining inquiry should make the part manufacturable, inspectable, and purchasable in the same thread. Use this checklist before sending CAD so the first reply can include useful DFM, lead-time, inspection, and document assumptions.
1. Prepare the technical RFQ package
- STEP/IGES model and PDF drawing with revision control
- Material grade, surface finish, hardness, and cleanability notes
- CTQ dimensions, datum surfaces, mating parts, and acceptance method
- Prototype quantity, repeat quantity, annual forecast, and ship-to country
- Inspection output needed: FAI, dimensional report, COA/MTR, or buyer format
Capability fit
Machining route, tolerance risk, and feature-level fit review.
Trust assets
FAI, COA/MTR, NDA, onboarding, and RFQ checklist downloads.
Inspection scope
CTQ dimensions, dimensional checks, FAI records, and buyer evidence.
Material records
Grade selection, COA/MTR support, and finish documentation.
Ready to Review a Custom EOAT Parts RFQ?
Send STEP/IGES files, 2D drawings, target quantity, material, finish, and the CTQ dimensions your team needs to approve. We will respond with DFM questions, quote assumptions, lead-time risks, and inspection scope notes.
