Robot Flanges & Adapter Plates
CNC machined robot flanges and EOAT adapter plates for bolt-circle alignment, tool stack control, dowel datums, and inspection-ready robot interfaces.

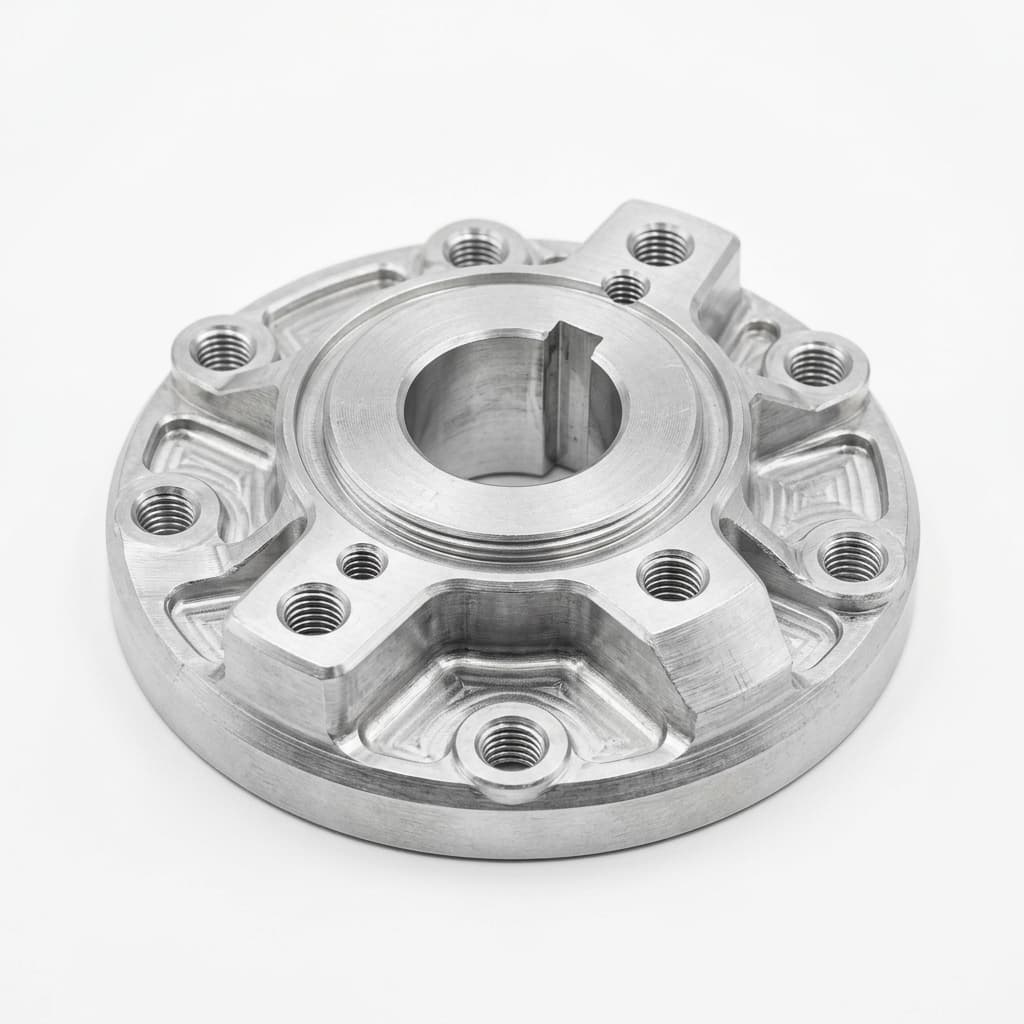

Adapter plates sit between the robot arm, tool changer, gripper, and custom EOAT frame. A useful plate is not only a round piece of metal; it controls bolt circles, dowel locations, stack height, mass, and service access.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Questions This Part Must Answer
- Will the bolt circle, dowel pattern, and robot-side interface match the target robot or tool changer?
- Which dimensions control repeatability after tool swaps or maintenance?
- Can unnecessary mass be removed without weakening the tool stack?
- How will flatness, bore position, and threaded features be inspected before shipment?
Common Applications
robot wrist adapter platestool-side and robot-side flange interfacescustom EOAT base platescobot payload reduction programsreplacement plates for existing automation cells
Material Options to Review
Material choice should follow payload, contact, cleaning, wear, and documentation requirements. These are common starting points for RFQ review, not a substitute for drawing-specific material callouts.
- AL6061-T6 for general lightweight adapter plates
- AL7075-T6 for higher load and stiffness requirements
- SUS304 or SUS316L for washdown or corrosion-sensitive cells
- POM or PEEK interface details when electrical isolation or non-marring contact is required
Machining Focus
The machining route should protect the features that affect robot fit, product contact, sealing, replacement, and repeat-order stability.
bolt circle position and concentric interface bores
dowel holes, counterbores, threaded holes, and access windows
pocketing strategy for weight reduction without stack-height drift
flat mating faces and deburred cable or pneumatic pass-throughs
Visual RFQ Context
Images to Anchor the Engineering Discussion
Use these product references to decide what belongs in the drawing package: interface faces, part-contact areas, service access, pneumatic or cable details, and the features that should become CTQ inspection points.

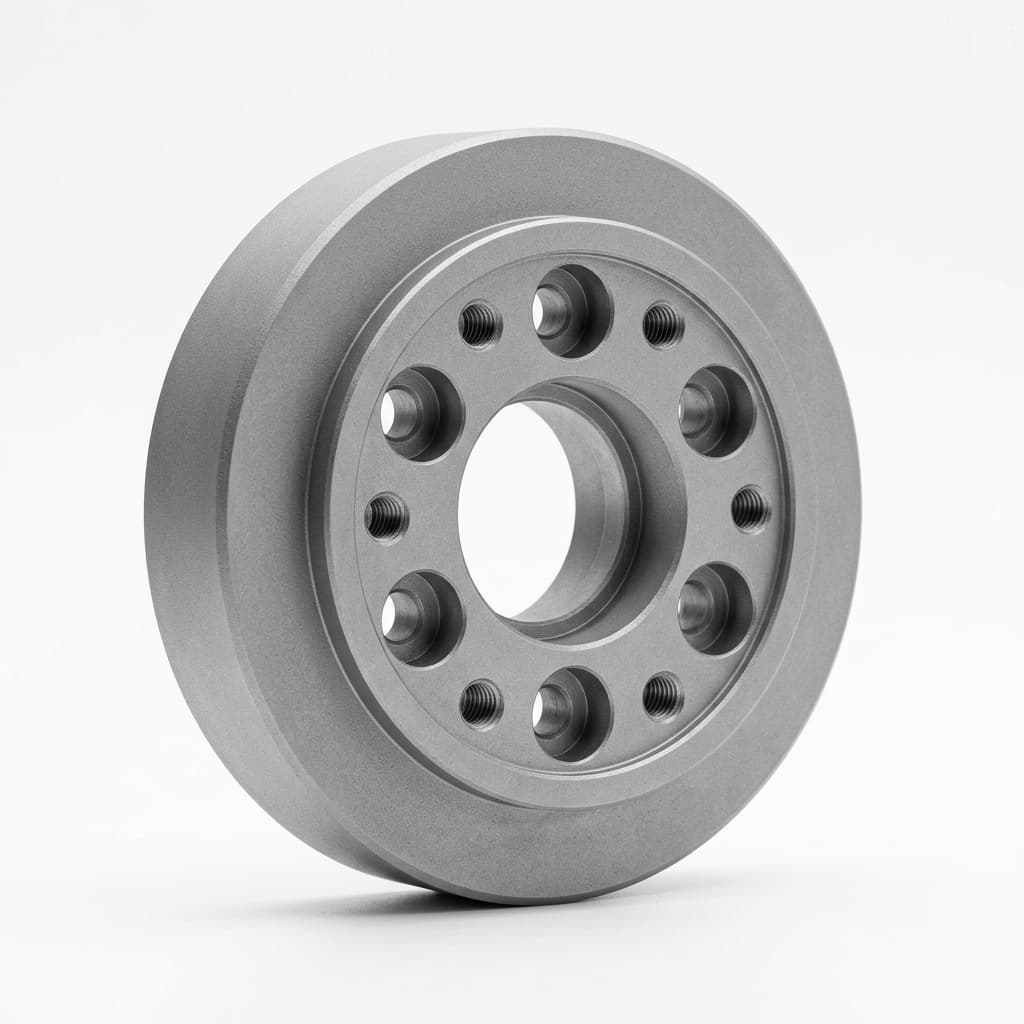

Heavy-duty adapter geometry
Useful when payload, face contact, and stack-height control drive the RFQ.

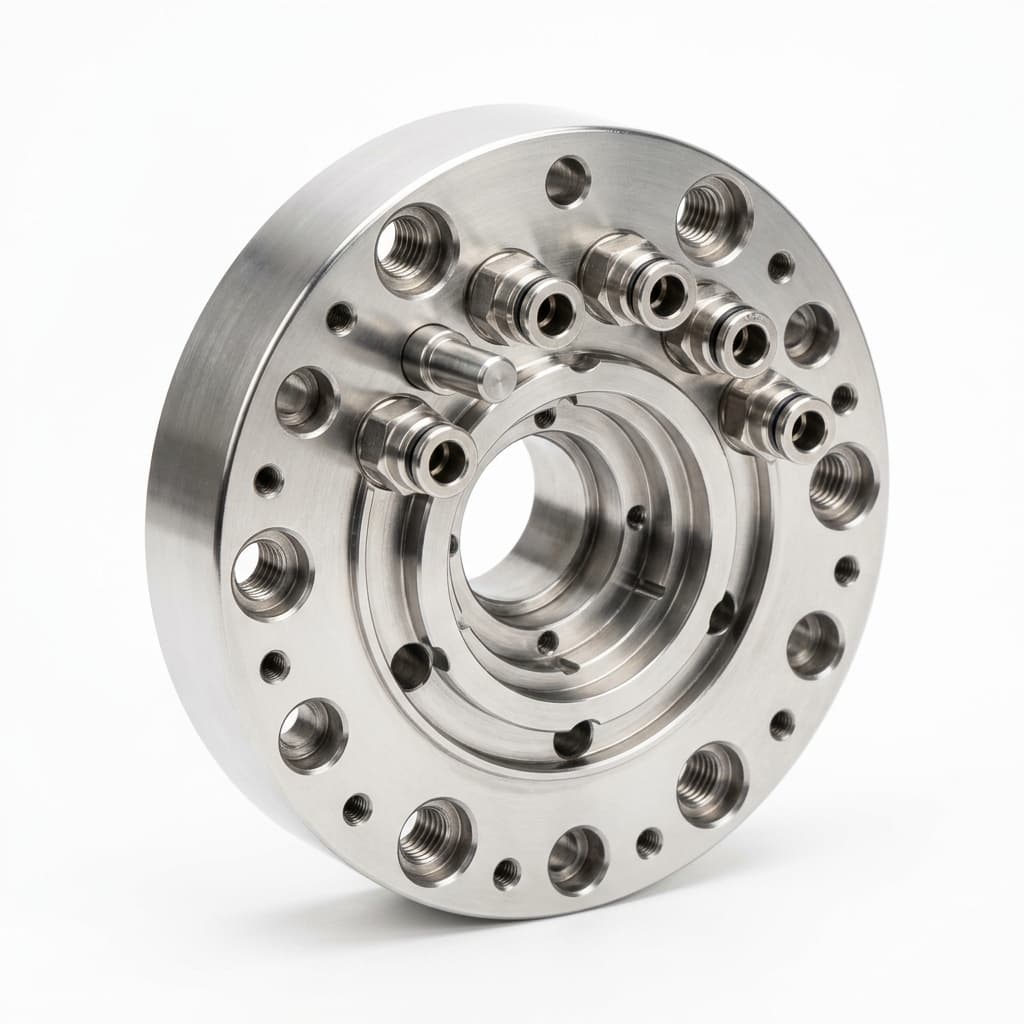

Locating features and mating faces
Helps buyers mark dowel, bore, and flatness features as CTQ items.

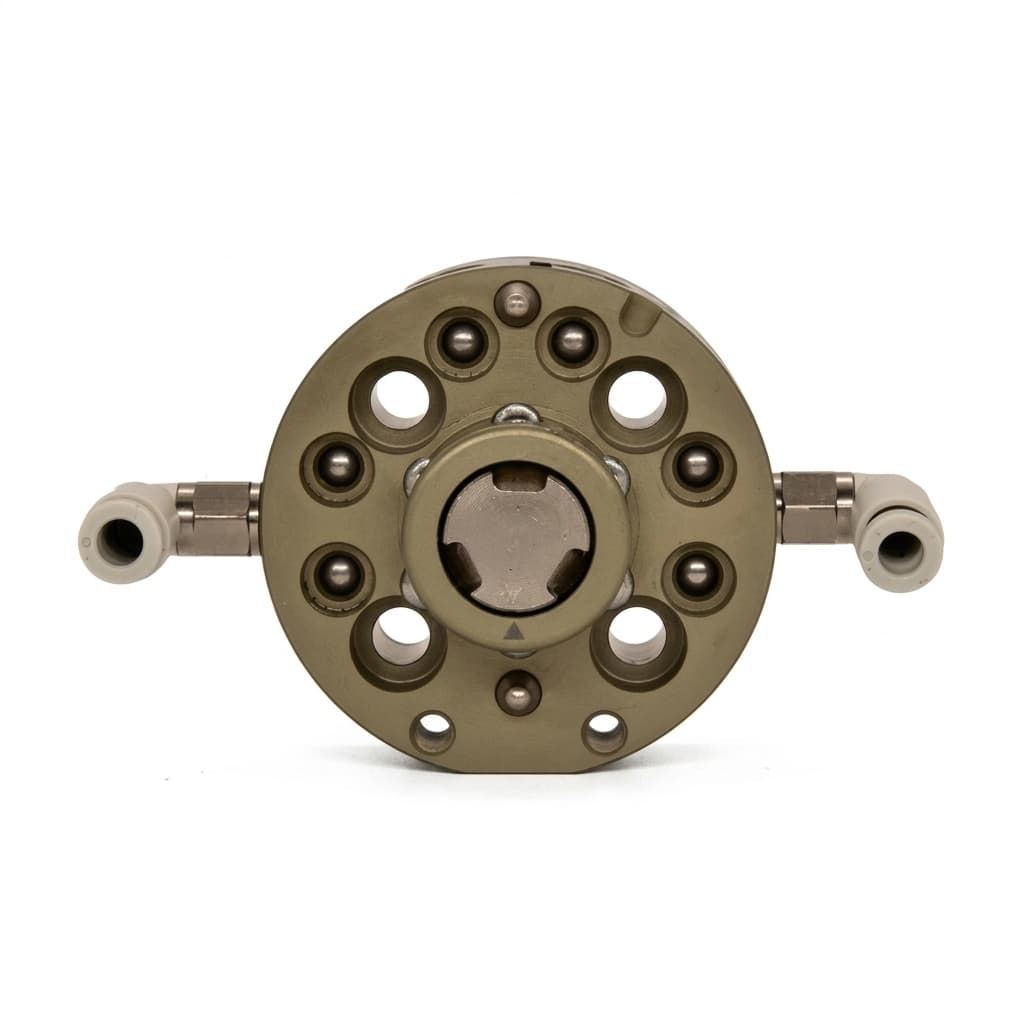

Tool-side interface context
Shows the adjacent interface that often determines bolt access and service clearance.
Inspection Plan by Functional Feature
A useful FAI or dimensional reporting plan starts from part function. The table below shows what buyers usually need to verify before releasing the sample or repeating the part.
| Feature | Risk Controlled | Typical Inspection | Buyer Output |
|---|---|---|---|
| Robot-side bore and dowel pattern | Tool center point shift, mounting interference, reteaching | Dimensional position check or drawing-defined critical dimension review | FAI record for robot interface approval |
| Mating face flatness | Tool stack tilt, uneven clamping, vibration | Flatness and face condition inspection by project scope | Interface acceptance notes before sample release |
| Pocketed weight-reduction geometry | Low stiffness, vibration, excessive payload mass | Wall thickness and retained rib review | DFM comments on payload and stiffness tradeoffs |
RFQ Checklist
Include these details in the first email to reduce clarification cycles and make the quote easier for engineering and procurement to review.
- Robot brand, model, flange standard, and tool changer interface if used
- 2D drawing showing bolt circle, dowel size, stack height, and CTQ dimensions
- Target material, finish, and expected operating environment
- Payload limit, tool mass target, and cycle rate if weight reduction matters
- Inspection records required for sample approval
Risk Controls Before PO
These controls prevent avoidable sample rework, ambiguous inspection results, and repeat-order mismatches.
- Separate cosmetic dimensions from robot-interface CTQ dimensions.
- Confirm whether plated or anodized dimensions are measured before or after finish.
- Mark dowel holes and locating features clearly instead of applying tight tolerance everywhere.
- Review wrench clearance and cable/pneumatic routing before machining.
Related EOAT Parts
All Product FamiliesReview Adjacent Product Families
Gripper Jaws & Fingers
Custom CNC machined gripper jaws and fingers for robotic handling, matched jaw sets, non-marring contact, part location, and CTQ inspection planning.
Review scope
Custom EOAT Components
Custom CNC machined EOAT components for robot end effectors, including mixed-material assemblies, brackets, plates, nests, jaws, and inspection-ready replacement parts.
Review scopeApplications That Often Use Robot Flanges
Application context changes material, finish, inspection, and documentation requirements. Review the adjacent pages before sending the RFQ if the part is tied to a regulated, high-cycle, or uptime-sensitive cell.
Automotive Assembly EOAT Components
CNC machined EOAT parts for automotive assembly cells, including robot adapter plates, gripper jaws, tooling nests, tool changer plates, and inspection-ready replacement components.
Packaging & Palletizing EOAT Components
CNC machined EOAT components for packaging, palletizing, bag handling, foam vacuum grippers, and high-cycle material handling automation.
RFQ Readiness
One RFQ Package That Engineering, Quality, and Procurement Can Use
A good EOAT machining inquiry should make the part manufacturable, inspectable, and purchasable in the same thread. Use this checklist before sending CAD so the first reply can include useful DFM, lead-time, inspection, and document assumptions.
1. Prepare the technical RFQ package
- STEP/IGES model and PDF drawing with revision control
- Material grade, surface finish, hardness, and cleanability notes
- CTQ dimensions, datum surfaces, mating parts, and acceptance method
- Prototype quantity, repeat quantity, annual forecast, and ship-to country
- Inspection output needed: FAI, dimensional report, COA/MTR, or buyer format
Capability fit
Machining route, tolerance risk, and feature-level fit review.
Trust assets
FAI, COA/MTR, NDA, onboarding, and RFQ checklist downloads.
Inspection scope
CTQ dimensions, dimensional checks, FAI records, and buyer evidence.
Material records
Grade selection, COA/MTR support, and finish documentation.
Ready to Review a Robot Flanges RFQ?
Send STEP/IGES files, 2D drawings, target quantity, material, finish, and the CTQ dimensions your team needs to approve. We will respond with DFM questions, quote assumptions, lead-time risks, and inspection scope notes.
