Automotive Assembly EOAT Components
CNC machined EOAT parts for automotive assembly cells, including robot adapter plates, gripper jaws, tooling nests, tool changer plates, and inspection-ready replacement components.
Automotive automation buyers usually care about uptime, repeatability, service spares, and fast validation. The machining plan should protect interface accuracy, replacement interchangeability, and first-article approval records.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Pressure in This Application
- Line downtime makes late replacement parts expensive, even when the part itself is small.
- Robot reteaching risk increases when adapter plates, jaw sets, and nests are not repeatable.
- Maintenance teams need spare parts that fit the approved cell without a new commissioning loop.
- Quality teams often need FAI, dimensional, material, and revision records before production release.
Typical Machined Parts
robot flanges and adapter platestool changer adapter platesgripper jaws and weld-cell bracketspart nests and locating fixturesreplacement pins, bushings, spacers, and standoffs
Application Requirements Mapped to EOAT Machining
A useful RFQ connects the automation problem to machining, material, inspection, and documentation decisions. This matrix shows what usually needs to be made explicit.
| Buyer Need | EOAT Concern | Machining Response | Buyer Evidence |
|---|---|---|---|
| Repeatable robot-side interface | TCP shift after tool swaps or spare-part replacement | Control bolt circles, dowel features, mating faces, and stack height. | FAI or dimensional record for the robot interface features. |
| Durable part contact | Part slip, cosmetic damage, or jaw wear during cycles | Machine matched jaw profiles, wear inserts, and serviceable contact pads. | Functional contact dimensions and paired-jaw notes. |
| Maintenance-ready spares | Replacement parts fit differently than the approved sample | Keep revision, material, finish, and inspection checkpoints traceable. | Repeat-order baseline and labeled delivery records. |
Material & Finish Direction
Material choices should follow environment, duty cycle, product contact, cleaning, payload, and documentation needs. Final selection should still be confirmed against the drawing and buyer standards.
AL7075-T6 for high-stiffness lightweight EOAT structures
AL6061-T6 for general adapter plates, brackets, and nests
17-4PH or SUS304 for wear-prone pins, jaws, and locating details
POM or nylon inserts for non-marring part contact
RFQ Checklist
Add these application details to the first RFQ so the quote can include realistic DFM, inspection, lead-time, and documentation assumptions.
- Robot model, tool changer model, and target cell function
- Approved sample drawing or current spare part drawing if replacing an existing tool
- CTQ dimensions that affect robot interface, product contact, or locating datums
- Material, finish, and expected wear or impact exposure
- Required FAI, dimensional reports, PPAP, or customer-specific approval documents
Application Visuals
What the Images Should Help Buyers Decide
Application images are useful only when they clarify risk. Use these examples to identify product-contact surfaces, robot interface constraints, vacuum or gripping details, service access, and the documentation your team needs before sample approval.

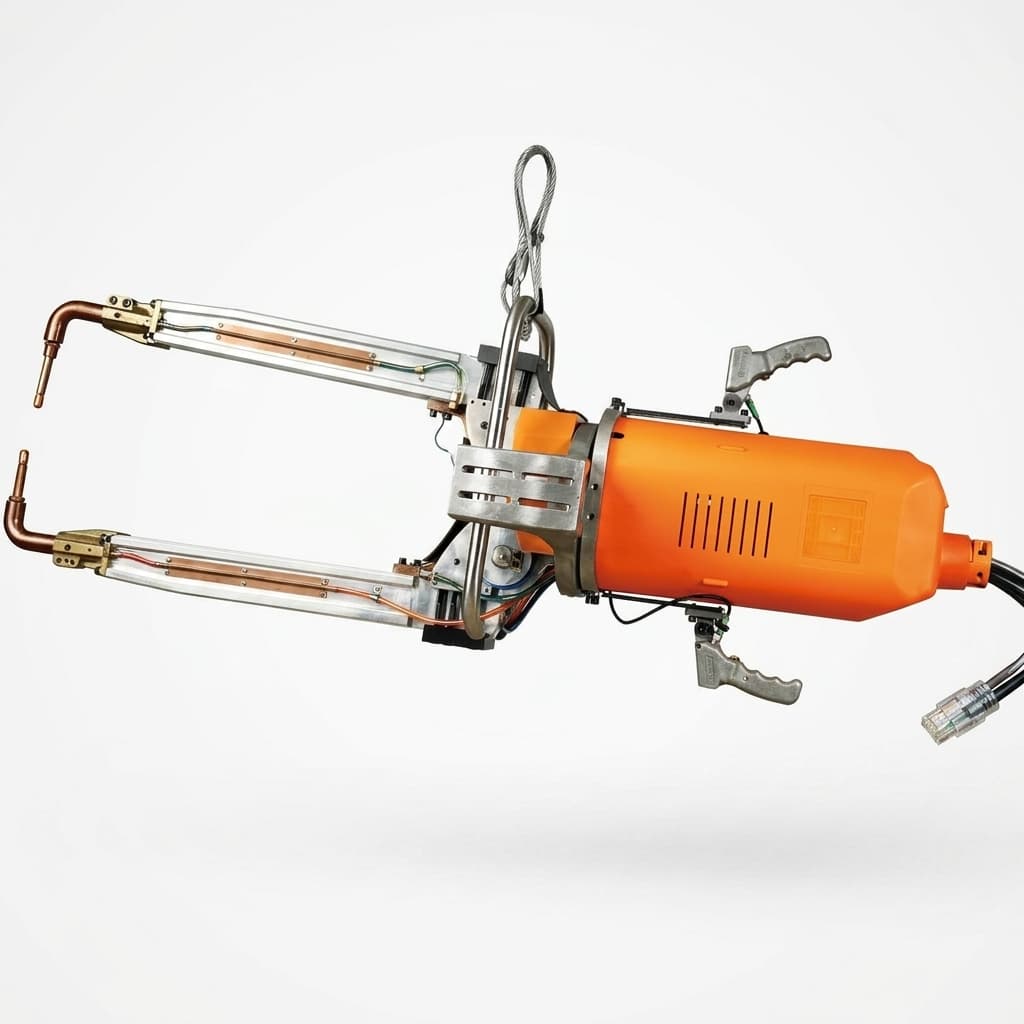

Weld-cell gripper context
Relevant for uptime, replacement fit, and robot-side repeatability.

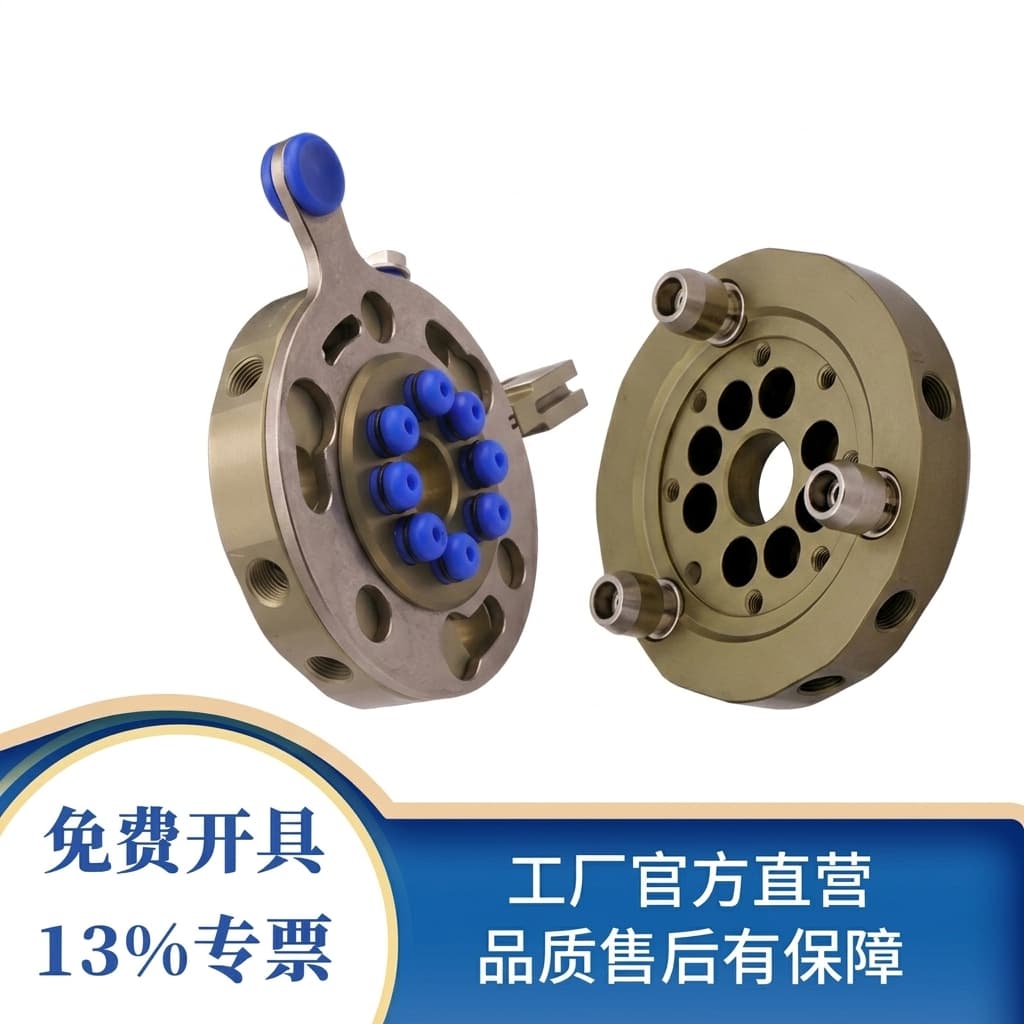

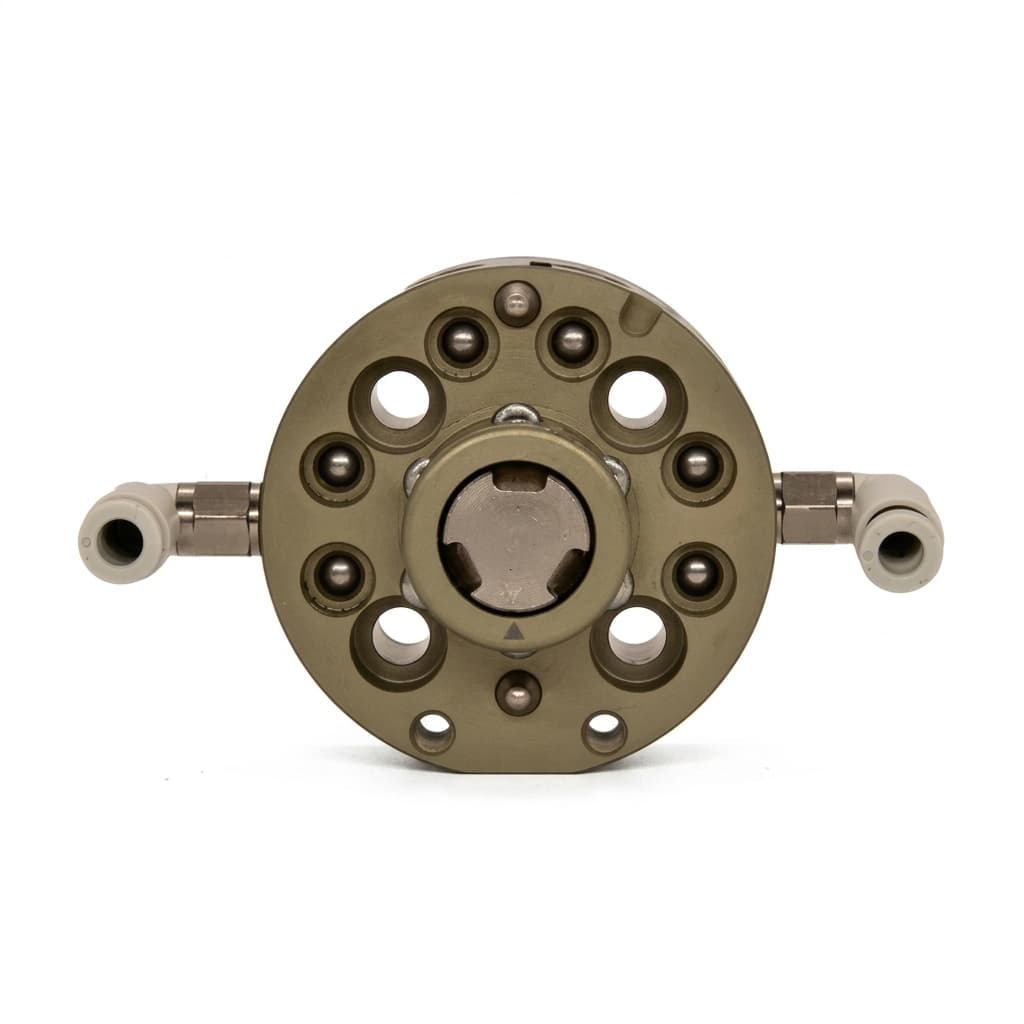

Tool-change interface
Shows why adapter plates and locating features need repeatable approval records.
Machined jaw replacement detail
Supports spare-part planning and matched jaw inspection discussions.
Risk Controls Before PO
These points should be resolved before quote approval when the parts affect line uptime, part quality, validation records, or supplier onboarding.
- Define which parts are direct replacements and which are design revisions.
- Mark paired or mirrored jaws so they do not get mixed during assembly.
- Confirm whether anodized/plated dimensions are controlled before or after finish.
- Include maintenance access and wrench clearance in the assembly CAD.
