Robot Flanges & Adapter Plates
CNC machined robot flanges and EOAT adapter plates for bolt-circle alignment, tool stack control, dowel datums, and inspection-ready robot interfaces.
Review scopeCNC Machined EOAT Product
Tool Changer Adapter Plates
CNC machined robot tool changer adapter plates for repeatable quick-change interfaces, bolt access, stack height control, and EOAT maintenance planning.
Quick-change adapter plates need repeatable interfaces on both sides: robot/tool changer and EOAT assembly. The machining review should protect mounting accuracy while keeping service access practical.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
Buyer Questions This Part Must Answer
- Does the plate match the selected tool changer standard and payload class?
- Are bolt access, cable routing, and pneumatic pass-throughs serviceable?
- How will stack height and face alignment be verified?
- Can the same route support future spare plates without requalification?
Common Applications
robot quick-change tool platestool-side EOAT adaptersrobot-side quick changer interfacesmulti-tool automation cellsspare plates for maintenance programs
Material Options to Review
Material choice should follow payload, contact, cleaning, wear, and documentation requirements. These are common starting points for RFQ review, not a substitute for drawing-specific material callouts.
- AL7075-T6 for high-stiffness lightweight quick-change plates
- AL6061-T6 for general EOAT adapter plates
- SUS304 or 17-4PH for high-wear or harsh environments
- Hard anodizing or passivation when finish is part of the interface scope
Machining Focus
The machining route should protect the features that affect robot fit, product contact, sealing, replacement, and repeat-order stability.
tool changer bolt pattern and locating features
face flatness, bore positions, and cable or pneumatic openings
low-profile machining where stack height affects reach
fastener access and assembly sequence around the end effector
Visual RFQ Context
Images to Anchor the Engineering Discussion
Use these product references to decide what belongs in the drawing package: interface faces, part-contact areas, service access, pneumatic or cable details, and the features that should become CTQ inspection points.

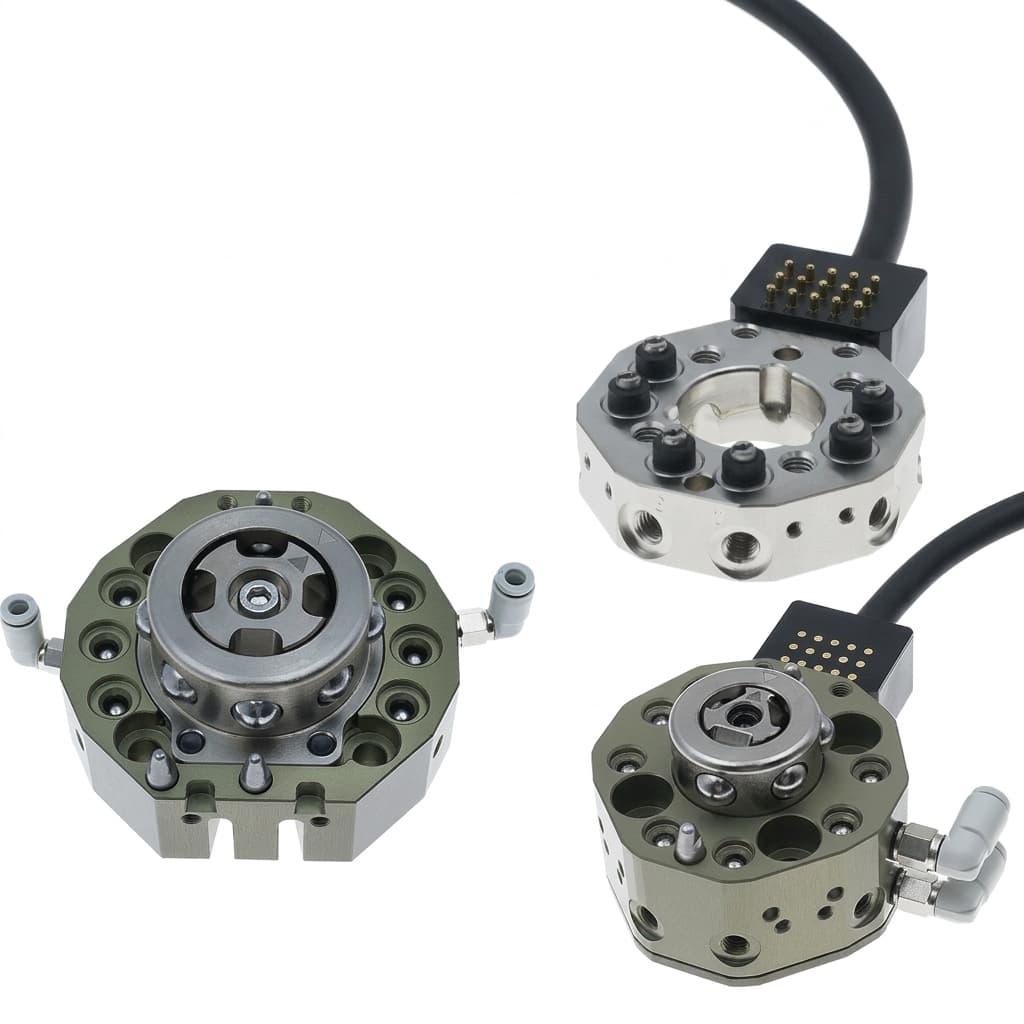

Quick-change interface
Useful for reviewing locating features, bolt pattern, and repeatability risk.
Service access context
Shows why cable, pneumatic, and fastener clearance should be discussed before PO.

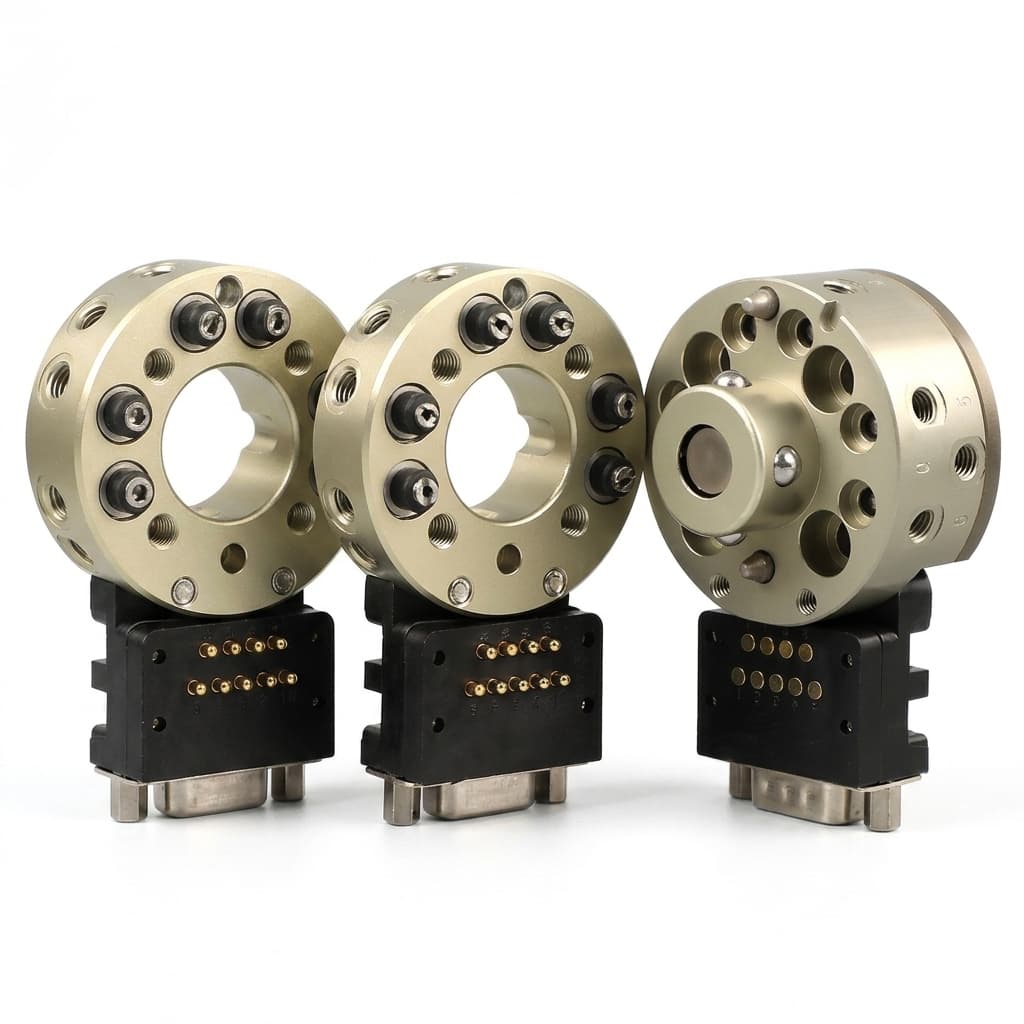

Precision adapter plate detail
Supports inspection planning around stack height and mating-face condition.
Inspection Plan by Functional Feature
A useful FAI or dimensional reporting plan starts from part function. The table below shows what buyers usually need to verify before releasing the sample or repeating the part.
| Feature | Risk Controlled | Typical Inspection | Buyer Output |
|---|---|---|---|
| Tool changer locating features | Repeatability loss after swaps | Dimensional or critical-feature check by drawing scope | Sample approval record for quick-change interface |
| Stack height and mating faces | TCP shift and collision risk | Thickness, flatness, and face condition review | Assembly baseline for robot programming |
| Fastener and service access | Difficult maintenance and stripped hardware | Clearance and thread checks | DFM notes for maintenance access |
RFQ Checklist
Include these details in the first email to reduce clarification cycles and make the quote easier for engineering and procurement to review.
- Tool changer brand, model, drawing, and payload class
- Robot model, EOAT mass, and target stack height
- Cable, pneumatic, or sensor pass-through requirements
- Surface finish and corrosion environment
- Inspection records needed for tool-change repeatability
Risk Controls Before PO
These controls prevent avoidable sample rework, ambiguous inspection results, and repeat-order mismatches.
- Confirm whether both sides of the adapter plate have independent datum schemes.
- Review tool access before adding deep pockets or hidden counterbores.
- Keep service clearance visible in the CAD package, not only in assembly notes.
- Define spare plate traceability if multiple tools must interchange in the same cell.
Related EOAT Parts
All Product FamiliesReview Adjacent Product Families
Custom EOAT Components
Custom CNC machined EOAT components for robot end effectors, including mixed-material assemblies, brackets, plates, nests, jaws, and inspection-ready replacement parts.
Review scope
Sensor Brackets & Cobot Mounts
Custom CNC machined sensor brackets, cobot mounts, cable-relief plates, and lightweight EOAT support parts for tight robot cell clearances.
Review scopeApplications That Often Use Tool Changer Plates
Application context changes material, finish, inspection, and documentation requirements. Review the adjacent pages before sending the RFQ if the part is tied to a regulated, high-cycle, or uptime-sensitive cell.
RFQ Readiness
One RFQ Package That Engineering, Quality, and Procurement Can Use
A good EOAT machining inquiry should make the part manufacturable, inspectable, and purchasable in the same thread. Use this checklist before sending CAD so the first reply can include useful DFM, lead-time, inspection, and document assumptions.
1. Prepare the technical RFQ package
- STEP/IGES model and PDF drawing with revision control
- Material grade, surface finish, hardness, and cleanability notes
- CTQ dimensions, datum surfaces, mating parts, and acceptance method
- Prototype quantity, repeat quantity, annual forecast, and ship-to country
- Inspection output needed: FAI, dimensional report, COA/MTR, or buyer format
Capability fit
Machining route, tolerance risk, and feature-level fit review.
Trust assets
FAI, COA/MTR, NDA, onboarding, and RFQ checklist downloads.
Inspection scope
CTQ dimensions, dimensional checks, FAI records, and buyer evidence.
Material records
Grade selection, COA/MTR support, and finish documentation.
Ready to Review a Tool Changer Plates RFQ?
Send STEP/IGES files, 2D drawings, target quantity, material, finish, and the CTQ dimensions your team needs to approve. We will respond with DFM questions, quote assumptions, lead-time risks, and inspection scope notes.
Inquiry Email
Attach your CAD files (STEP, IGES) and tolerances for quick quoting.
